Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
001-00
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
 |

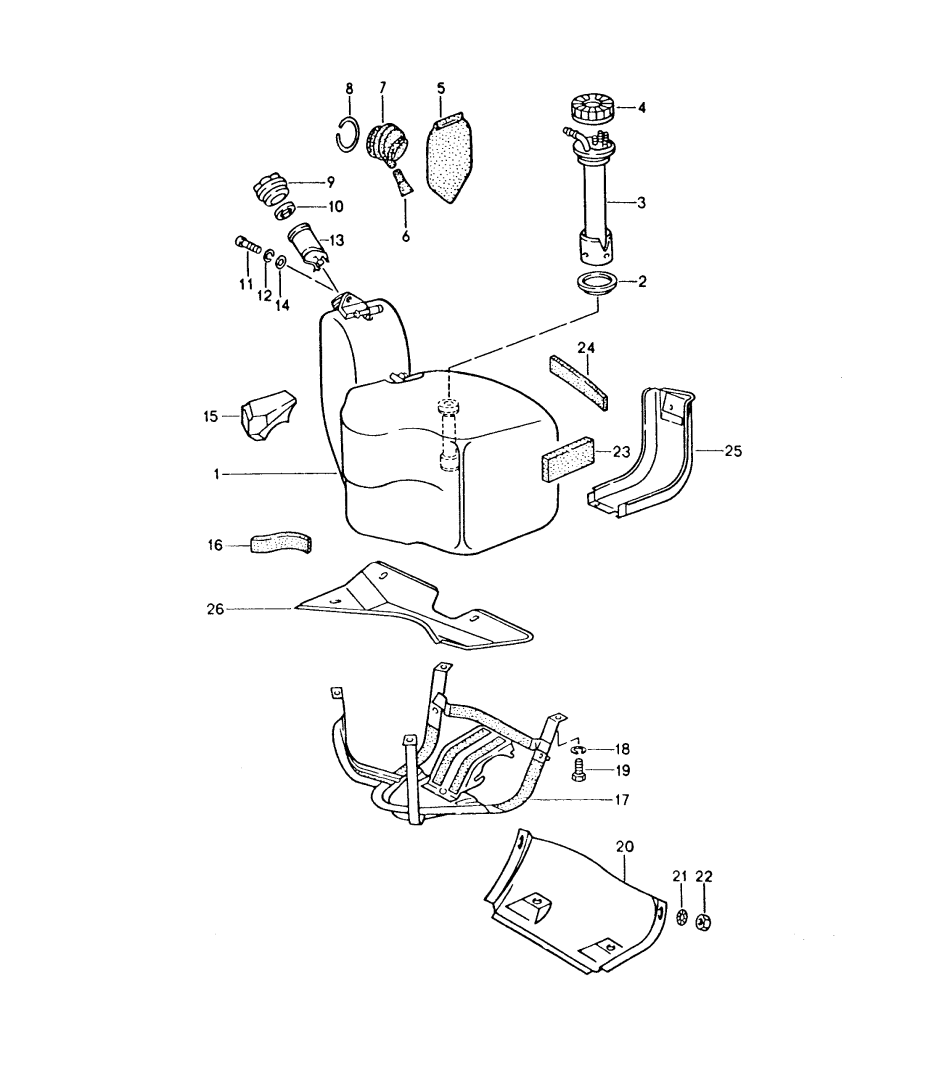

Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|
fuel tank |
|
|
|
|
|
1 |
928 201 003 08 |
fuel tank use also: POS 13 for (USA ) (CDN ) M 298 / 299 |
|
1 |
|
|
|
2 |
928 201 327 02 |
gasket |
|
1 |
|
|
|
3 |
928 641 030 02 |
tank gauge fuel tank |
|
1 |
|
|
|
4 |
113 201 375 01C |
union nut black |
|
1 |
|
|
|
5 |
928 201 057 02 |
protective flap |
|
1 |
|
|
|
6 |
928 201 255 02 |
drain bush |
|
1 |
|
|
|
7 |
928 201 333 02 |
grommet |
|
1 |
|
|
|
8 |
900 906 046 00 |
outer ring |
|
1 |
|
|
|
9 |
928 201 901 03 |
fuel tank cap with stipulated lock number (state lock number) |
|
1 |
|
|
|
(9) |
928 201 903 02 |
fuel tank cap w/o stipulated lock number |
|
1 |
|
|
|
10 |
928 201 275 03 |
sealing ring |
|
1 |
|
|
|
11 |
N 014 707 2 |
pan-head screw (M8*15) |
|
1 |
|
|
|
12 |
900 142 002 01 |
lock ring (A8) |
|
1 |
|
|
|
13 |
928 201 027 03 |
insert |
|
|
|
|
|
14 |
900 025 007 02 |
washer (A8,4) |
|
1 |
|
|
|
15 |
928 201 107 02 |
desk pad |
|
1 |
|
|
|
- |
999 911 227 40 |
base strap (210 MM) |
|
1 |
|
|
|
17 |
928 201 313 06 |
tank covering |
|
1 |
|
|
|
18 |
900 027 015 02 |
lock ring (B8) |
|
x |
|
|
|
19 |
N 010 246 4 |
hexagon-head bolt (M8*45) |
|
x |
|
|
|
20 |
928 201 145 03 |
lid |
|
1 |
|
|
|
21 |
N 042 121 3 |
shake-proof washer (A6,4) |
|
2 |
|
|
|
22 |
900 076 010 02 |
hexagon nut (M6) |
|
4 |
|
