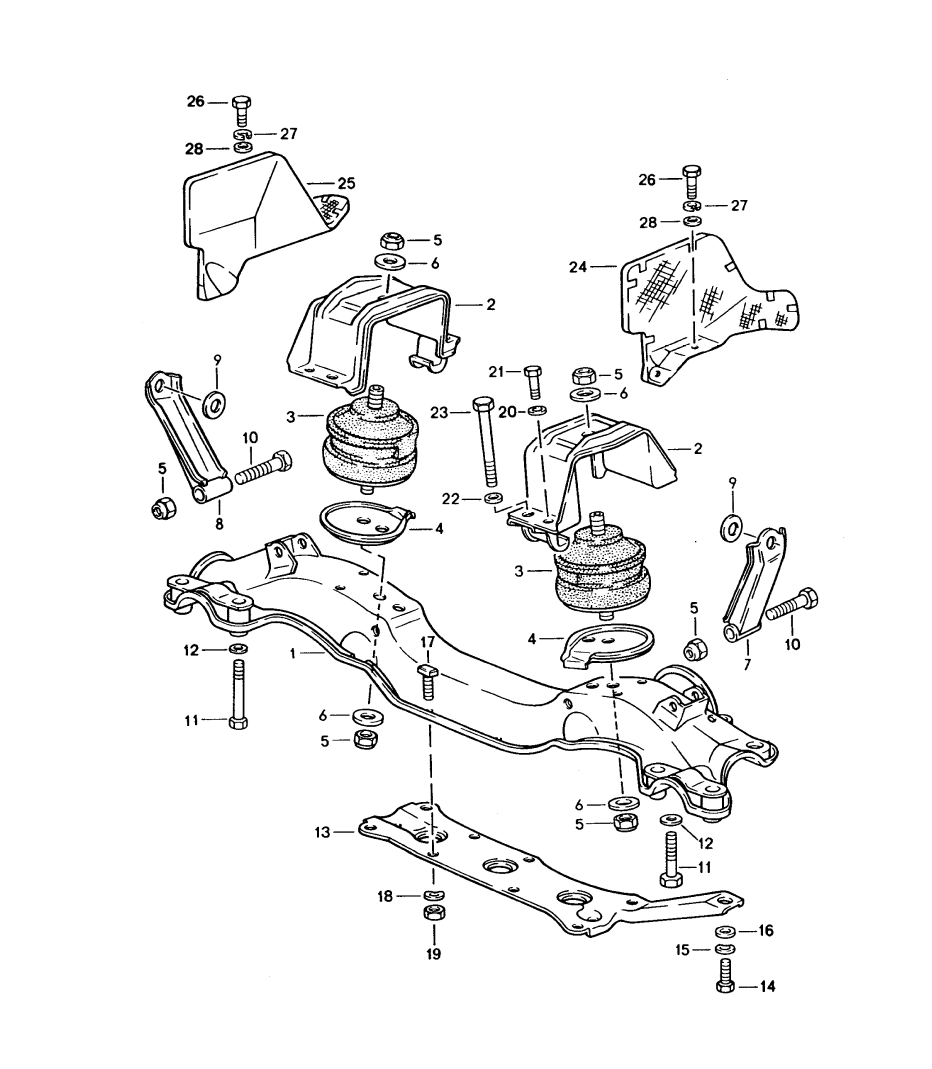

engine suspension

Model	Year	MG	SG	Illustration	Restrictions	UPD		PET
928	1995	0	01	001-00		248		PET

	Pos	Part Number	Description	Remark	Qty	Model
			engine suspension
	1	928 375 Oll 06	engine carrier		1
	(1)	927 375 Oll 06	engine carrier		1
	2	928 375 069 01	engine bracket		2
	3	928 375 039 00	hydraulic mount		2
	4	928 375 371 00	stop plate		2
	5	900 910 046 02	lock nut (M12*1, 5)		4
	6	999 025 091 02	washer		4
	7	928 375 063 00	bracket	/L	1
	8	928 375 064 00	bracket	/R	1
	9	928 375 2ll 00	washer		2
	10	N 010 156 3	hexagon-head bolt (M121,570)		2
	11	N 010 455 3	screw (M10*55)		2
	12	928 375 212 00	washer		2
	13	928 375 019 00	reinforcement plate	/LL	1
	(13)	927 375 021 02	reinforcement plate	/RL	1
	14	900 075 043 02	hexagon-head bolt (M10*30)	/LL	1
	14	900 075 043 02	hexagon-head bolt (M10*30)	/RL	2
	15	900 025 008 09	washer (B 10,5)	/LL	1
	15	900 025 008 09	washer (B 10,5)	/RL	2
	16	900 223 Oll 02	washer (B 10,5)	/LL	1
	16	900 223 Oll 02	washer (B 10,5)	/RL	2
	17	928 375 125 00	t-headed screw		4
	18	N 012 241 8	spring washer B 8		4
