Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|

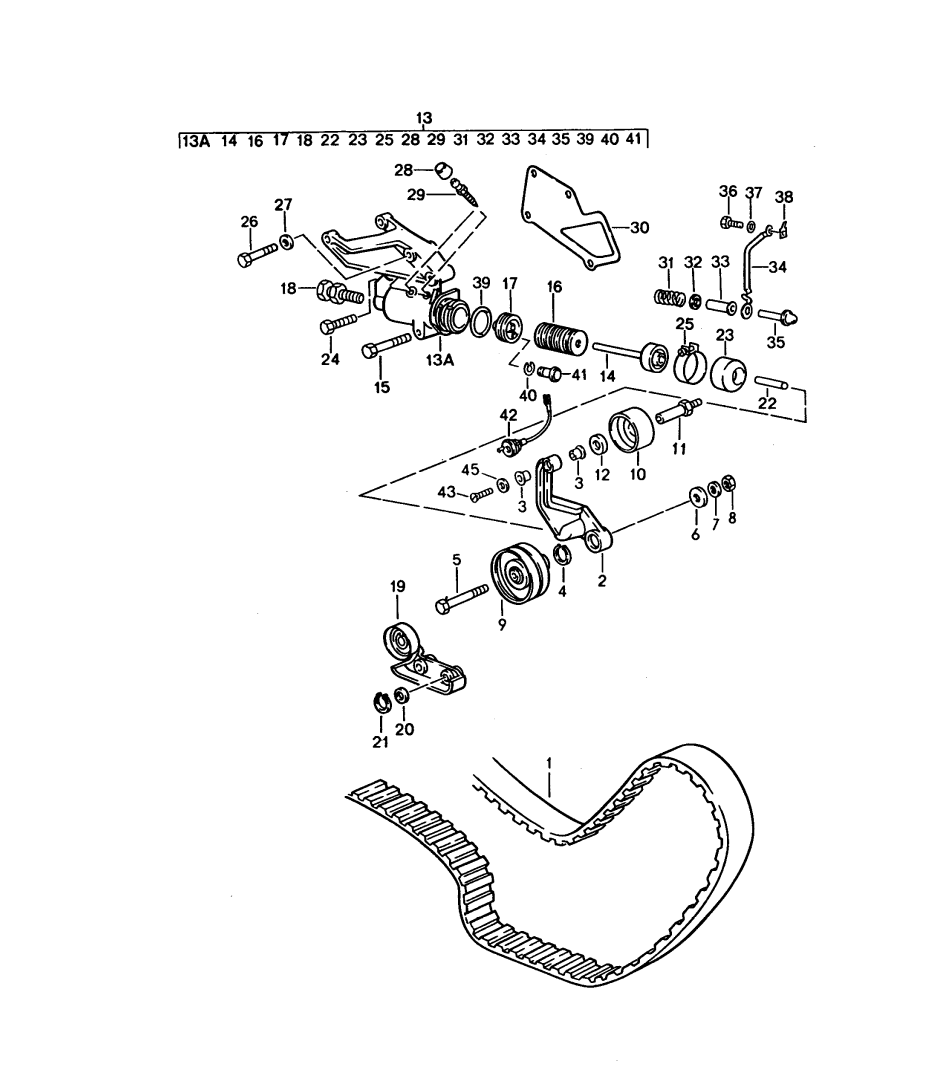

driving mechanism camshaft |
|
|
M28.49/50 |
|
1 |
928 105 157 50 |
toothed belt |
|
1 |
|
|
2 |
928 105 489 02 |
carrier for tension roller |
|
1 |
|
|
3 |
928 105 613 04 |
bearing sleeve |
|
2 |
|
|
4 |
N 042 364 1 |
circlip (20*1,75) |
|
1 |
|
|
5 |
900 074 139 02 |
hexagon-head bolt (M8*55) |
|
1 |
|
|
6 |
999 025 068 07 |
washer (9*25*3,5) |
|
1 |
|
|
7 |
900 025 007 02 |
washer (A8,4) |
|
1 |
|
|
8 |
900 076 025 02 |
hexagon nut (M8) |
|
1 |
|
|
9 |
928 105 512 12 |
tensioning roller |
|
1 |
|
|
10 |
928 105 571 04 |
roller |
|
1 |
|
|
11 |
928 105 570 08 |
bearing pin |
|
1 |
|
|
12 |
928 105 572 00 |
washer |
|
1 |
|
|
13 |
928 105 036 00 |
tension roller housing |
|
1 |
|
|
13A |
928 105 066 00 |
tension roller housing |
|
1 |
|
|
14 |
928 105 059 04 |
piston |
|
1 |
|
|
15 |
N 010 360 6 |
hexagon-head bolt (M8*60) |
|
1 |
|
|
16 |
928 105 539 03 |
bi-metal plate |
|
35 |
|
|
17 |
928 105 588 00 |
valve support |
|
1 |
|
|
18 |
928 105 075 03 |
adjusting screw |
|
1 |
|
|
19 |
928 105 067 00 |
carrier for tension roller |
|
1 |
|
|
20 |
900 234 003 02 |
shim (8*14*1) |
|
2 |
|
|
21 |
N 012 408 2 |
circlip (8*0,8) |
|
2 |
|
|
22 |
928 105 551 02 |
push rod |
|
1 |
|
