Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
001-00
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
|
 |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|

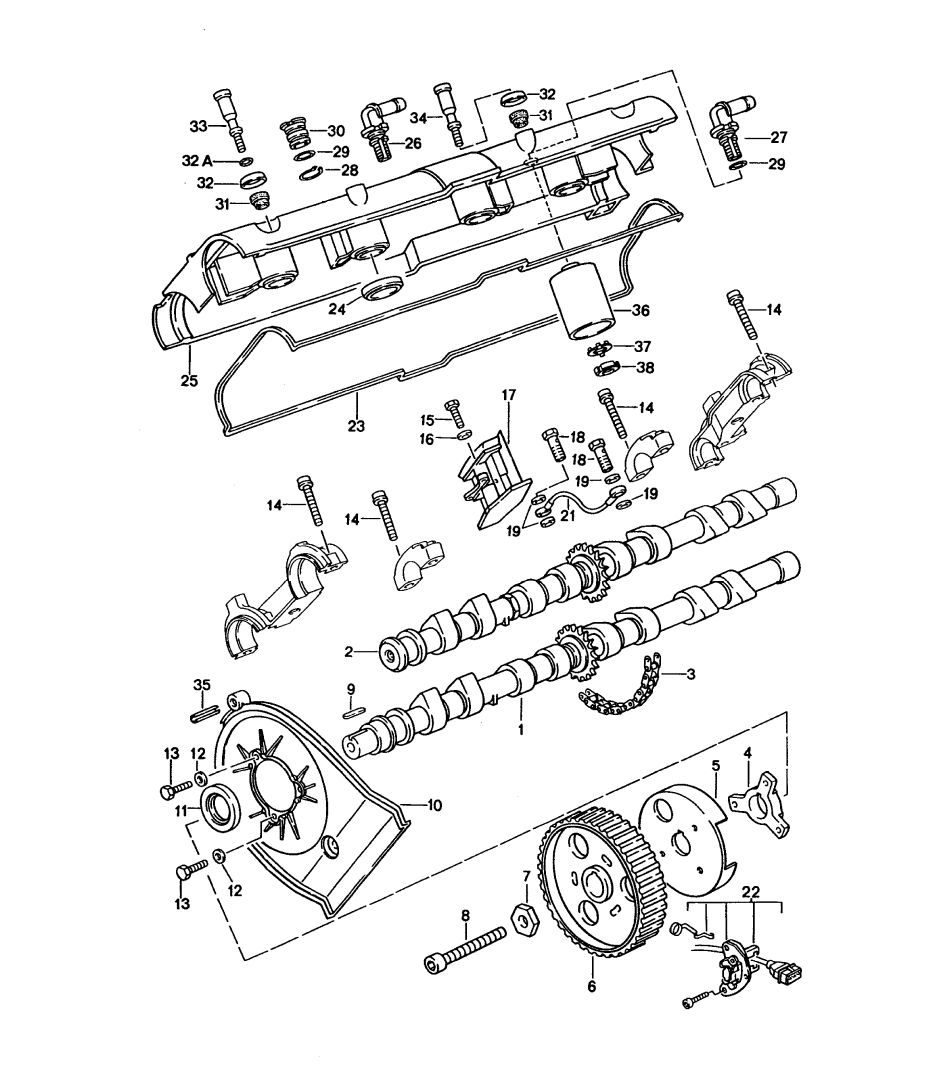

camshaft |
|
|
M28.49/50 |
|
|
1 |
928 105 273 03 |
camshaft exhaust (cylinders 1 - 4) |
|
1 |
|
|
|
(1) |
928 105 274 03 |
camshaft exhaust (cylinders 5 - 8) |
|
1 |
|
|
|
2 |
928 105 271 03 |
camshaft intake (cylinders 1 - 4) |
|
1 |
|
|
|
(2) |
928 105 272 03 |
camshaft intake (cylinders 5 - 8) |
|
1 |
|
|
|
3 |
944 105 501 05 |
timing chain |
|
2 |
|
|
|
4 |
928 105 459 00 |
hub |
|
2 |
|
|
|
5 |
928 105 460 01 |
rotor trim |
|
2 |
|
|
|
6 |
928 105 530 01 |
camshaft timing gear |
|
2 |
|
|
|
7 |
928 105 457 02 |
washer |
|
2 |
|
|
|
8 |
N 010 455 3 |
screw (M10*55) |
|
2 |
|
|
|
9 |
900 117 073 00 |
feather key (M4*4*20) |
|
2 |
|
|
|
10 |
928 105 127 06 |
toothed belt covering |
/L |
1 |
|
|
|
(10) |
928 105 148 06 |
toothed belt covering |
/R |
1 |
|
|
|
11 |
999 113 282 40 |
shaft sealing ring |
|
2 |
|
|
|
12 |
900 025 007 02 |
washer (A6,4) |
|
6 |
|
|
|
13 |
900 075 014 02 |
hexagon-head bolt (M6*18) |
|
6 |
|
|
|
14 |
999 218 023 02 |
combination screw (M8*35) |
|
52 |
|
|
|
(14) |
999 510 029 02 |
combination screw (M8*40) |
|
18 |
|
|
|
15 |
900 067 089 02 |
pan-head screw (M6*22) |
|
4 |
|
|
|
16 |
N 011 524 7 |
washer (A6,4) |
|
4 |
|
|
|
17 |
928 105 028 08 |
chain adjuster (cylinders 1 - 4) |
|
1 |
|
|
|
(17) |
928 105 027 08 |
chain adjuster (cylinders 5 - 8) |
|
1 |
|
|
|
18 |
928 105 476 00 |
banjo bolt |
