Model
Year
MG
SG
Illustration
Restrictions
UPD
PET
928
1995
0
01
101-05
248
|
Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
|
928 |
1995 |
0 |
01 |
101-05 |
248 |
||||
|
|
|
 |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|
|

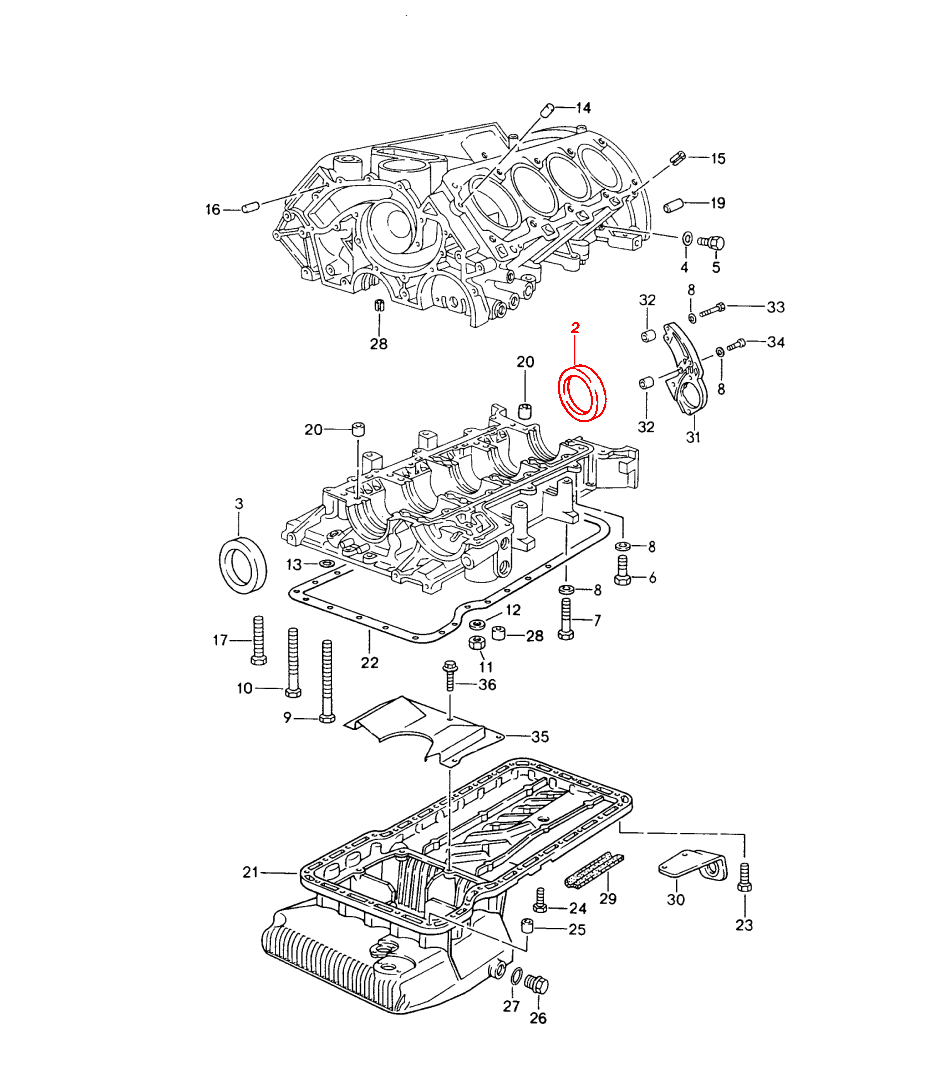

crankcase single parts |
|
|
M28.49/50 |
|
|
* 999 113 264 40 |
radial sealing ring 90 x 110 x 12 |
|
1 |
|
||
|
* 999 113 263 40 |
shaft sealing ring 60 x 85 x 10 |
|
1 |
|
||
|
4 |
* 900 123 055 30 |
sealing ring (A12*17) |
|
2 |
|
|
|
5 |
N 029 703 1 |
screw plug (M12*1,5) |
|
2 |
|
|
|
6 |
900 075 099 02 |
hexagon-head bolt (M8*30) |
|
6 |
|
|
|
7 |
N 010 361 4 |
hexagon-head bolt (M8*65) |
|
10 |
|
|
|
8 |
900 025 007 02 |
washer (A 8,4) |
|
24 |
|
|
|
9 |
900 082 068 02 |
hexagon-head bolt (M12*1,5*130) |
|
1 |
|
|
|
10 |
900 082 040 02 |
hexagon-head bolt (M12*1,5*120) |
|
9 |
|
|
|
11 |
N 011 010 13 |
hexagon nut (M10) |
|
22 |
|
|
|
12 |
900 025 008 09 |
washer (A10,5) |
|
2 |
|
|
|
13 |
928 101 303 00 |
washer |
|
10 |
|
|
|
14 |
999 012 034 00 |
straight pin (8 M6*12) |
|
4 |
|
|
|
15 |
900 095 072 01 |
tensioning sleeve (6*12) |
|
2 |
|
|
|
16 |
N 013 199 1 |
straight pin (6*12) |
|
2 |
|
|
|
17 |
900 074 181 02 |
screw (M10*95) |
|
10 |
|
|
|
(17) |
N 010 500 3 |
hexagon-head bolt (M10*110) |
|
4 |
|
|
|
19 |
900 012 070 00 |
straight pin (12*18) |
|
2 |
|
|
|
20 |
928 101 195 03 |
fitting bushing |
|
2 |
|
|
|
21 |
928 101 208 01 |
oil pan |
|
1 |
|
|
|
22 |
* 928 101 207 00 |
oil sump gasket |
1 |
|||
|
23 |
900 075 347 02 |
screw (M6*28 Zl) |
25 |
|||
|
24 |
900 075 341 02 |
combination screw (M6*25 Zl) |
5 |
